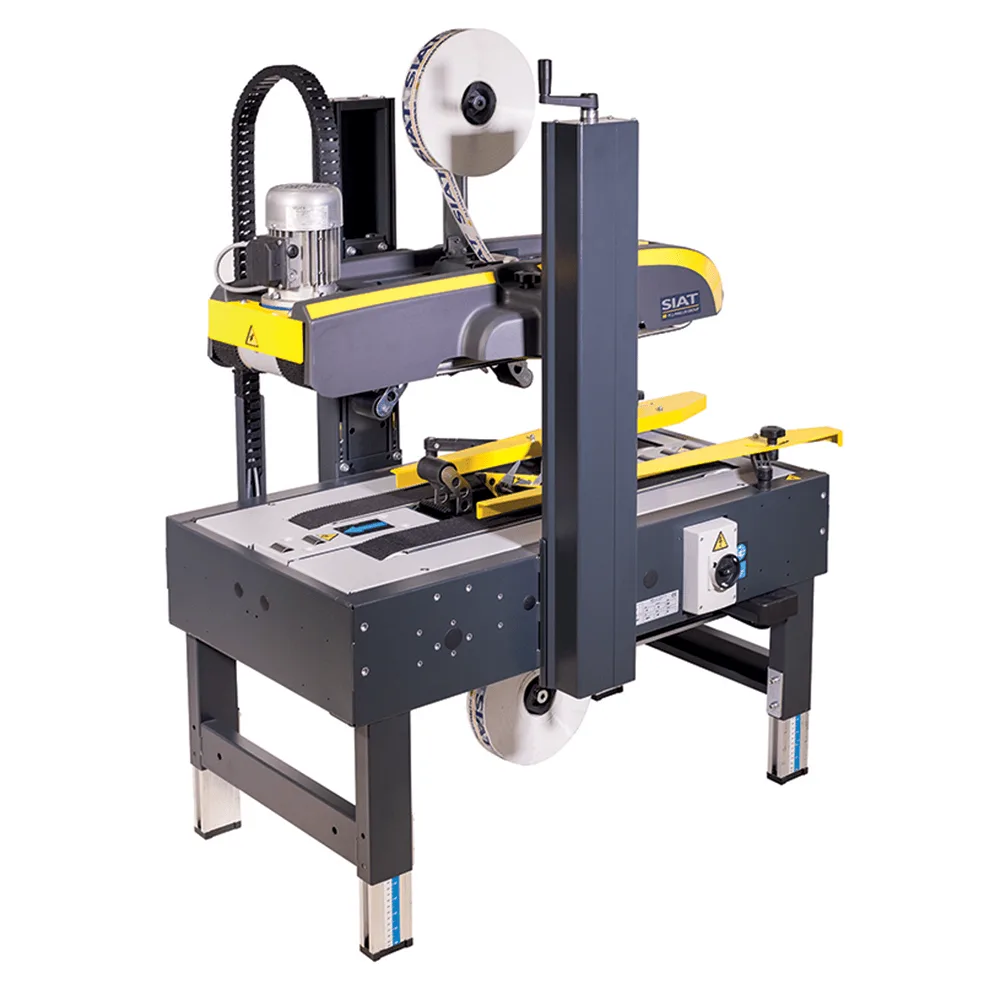

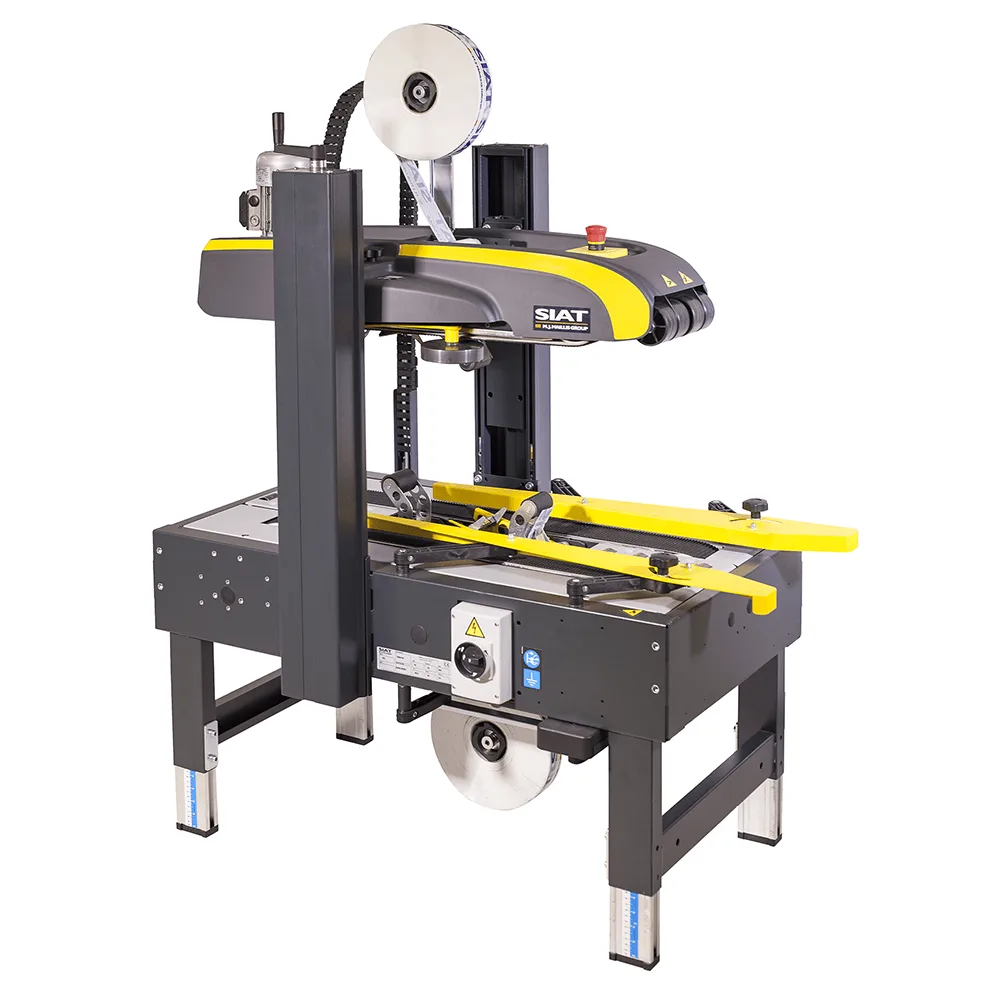

SK20

• Modern Design The SK20 showcases a sleek, modern design that enhances both functionality and aesthetic appeal in your packaging line. • Time-Saving Solution Engineered for efficiency, the SK20’s features streamline operations, significantly reducing setup and maintenance time.

• Manual Adjustment of Carton Box Width and Height Easily adjust the width and height of carton boxes using convenient handles, providing flexibility for various box sizes. • Taping Units: K11R (50 mm) or K12R (75 mm) Choose between the K11R or K12R taping units to meet your specific sealing needs, ensuring optimal performance. • Top and Bottom Drive Belts The SK20’s top and bottom drive belts ensure secure and stable box transport during the sealing process. • Drive Belts Speed: 20 m/min The drive belts operate at a speed of 20 meters per minute, providing a fast and efficient sealing process. • Dual Motors (0.13 kW each) Powered by two 0.13 kW motors, the SK20 delivers robust performance for high-demand applications. • Maximum Output: 20 Boxes Per Minute (bpm) The SK20 can process up to 20 boxes per minute, depending on box dimensions, offering high throughput for your packaging line. • Box Dimensions • Minimum: Length 150 mm, Width 140/170* mm, Height 100 mm • Maximum: Length ∞, Width 500 mm, Height 500 mm • With top side pressure rollers, minimum width manageable is 205 mm. Upper guides are required for box widths less than 205 mm (optional).
