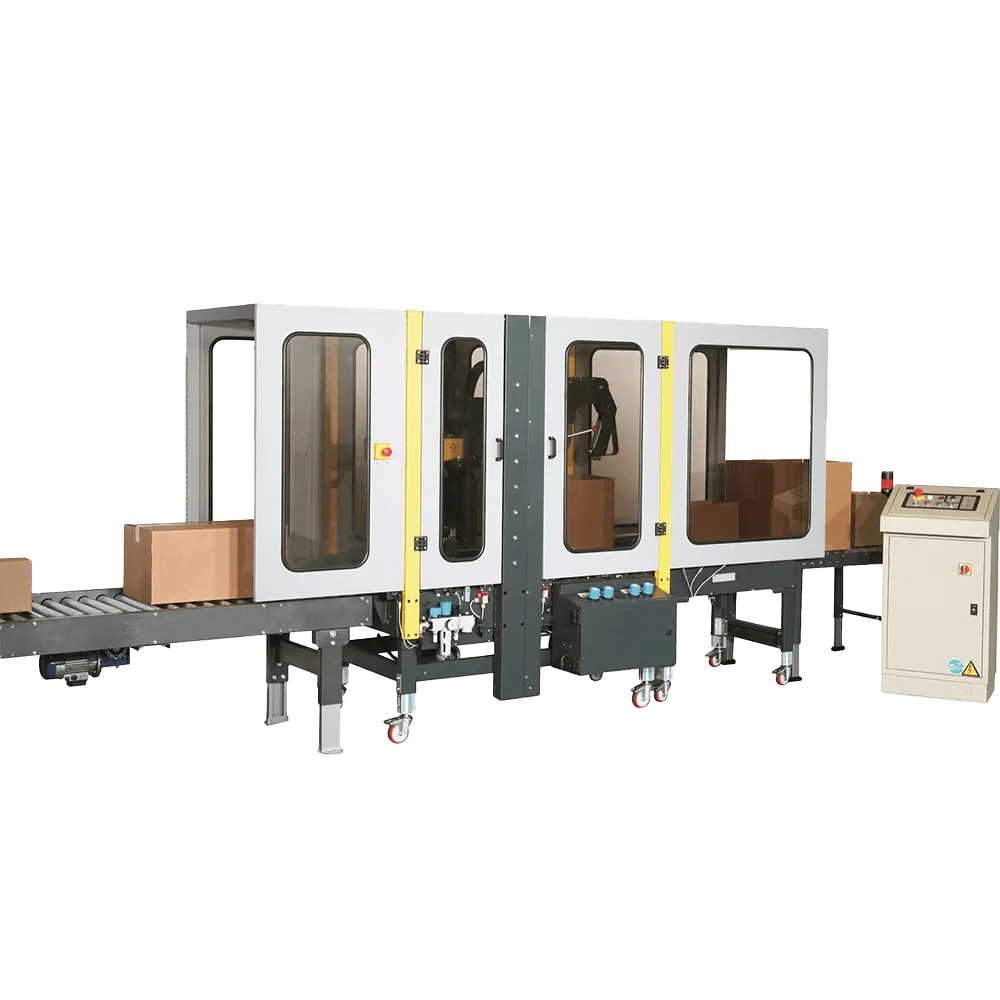

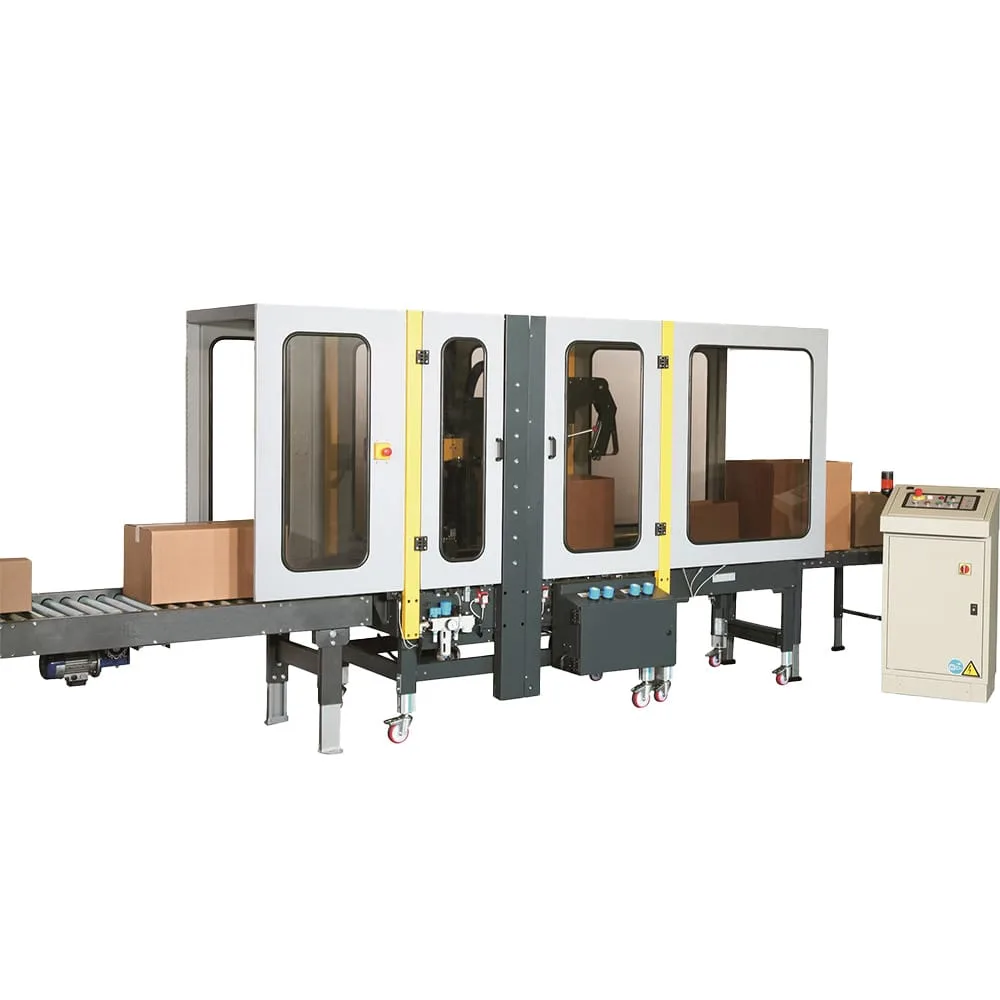

SM44HS

• Hands-Free Operation : Automatically folds box flaps, freeing up the operator for other tasks, enhancing overall efficiency. • High-Speed Sealing : Capable of handling up to 800 boxes per hour, making it perfect for high-volume production. • Versatile Box Handling : Automatically adjusts to a wide range of box sizes, providing flexibility in production lines. • Enhanced Safety : Equipped with safety protections and an intuitive control panel to ensure secure and safe operation. • Effortless Mobility : Optional casters allow easy movement of the machine across different workspaces.

• Automatic Four-Flaps Folder : Efficiently folds the box flaps, freeing up the operator’s hands for other tasks. • Side Drive Belts : Two belts, each 75 mm wide, ensure secure movement of boxes through the machine. • High-Speed Operation : Drive belts operate at 30 m/min, powered by two 0.9 kW motors for reliable performance. • Precise Flap Control : Side pressure rollers ensure accurate closing of the box flaps. • Smart Detection : Electro/pneumatic system detects box height for precise sealing. • Efficient Taping : Comes with two K11R taping units (50 mm width) and a low/brake tape device for consistent sealing. • Safety Features : Includes side safety protections connected to electro-pneumatic disconnection switches, and safety protection grids for enhanced operator safety. • User-Friendly Control : Integrated control panel for easy pneumatic adjustment and operation. • High Capacity : Capable of sealing up to 800 boxes per hour, making it suitable for high-volume production lines. • Box Handling : AS26HS indexing unit with a box holding device for smooth and controlled box movement. • Box Dimensions: • Minimum : L 200 mm x W 160 mm x H 140 mm • Maximum : L 600 mm x W 500 mm x H 500 mm *Additional configurations available for larger or smaller box sizes.
